PART # 402534
4S Two Gang Ring 1" Raised
- Part number
- 402534
DYNOTECH ELECTRICAL / WHOLESALE CATALOG
Model-specific details for distributor purchasing. Sign in for your approved account pricing or request a wholesale quote.

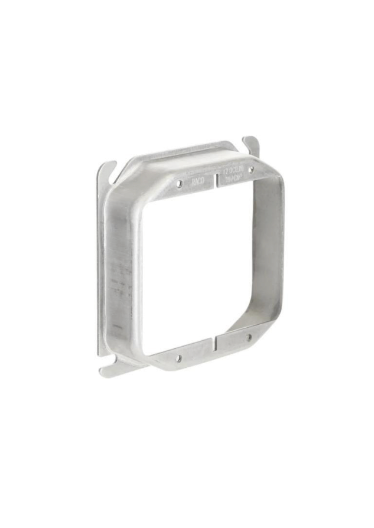

Product photograph supplied for this listing. Family variants may share a photograph.
4″ Square Double Gang Device Rings Raised 1".
4"
1" Rise, 3.5 cu.in.
Thickness: 1.2mm & 1.3mm
Galvanized Steel
ETL
Mount electrical devices: It provides a mounting surface for electrical fixtures, switches, and other devices, such as outlets.
Accommodate wall thickness: The raised design (ranging from 1/4" to 2" or more) helps the device sit flush with the wall surface, whether it's drywall, tile, or other wallboard.
Provide access to the box: It allows access to the interior of the electrical box for wiring and connections.
Protect wires: It helps to cover and protect them.
Color: Silver
Partition divides 4 in. square boxes into two compartments.
Use partitions with two-device covers which have a slot for the partition.
Prevents nicking insulation on installed wiring.
Keeps debris and sheetrock mud from entering box.
Prevents router bits from entering box.
Easy snap-on and snap-off design.
50 pcs
Use the exact SKU and its technical sheet when comparing configurations. Contact us for any specification not shown.
